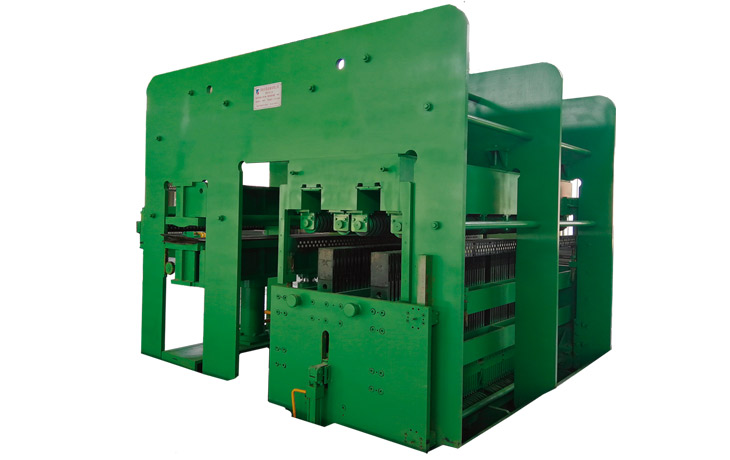

integrated heavy clamp tension station

Steel cord conveyor belt(fabric) flat vulcanization production line Technical parameters / name

perfermance parameters	1200X10000	1400X10000	1800X10000 (12600)	2000X10000	2200X10000	2400X10000 (10600)	2600X10600	2700X15600
Nominal mounding force MN	48	56	72/90.72	80	88	108/114.48	124.02	176.9
Hot plate specifications（L*W)mm	1200X10000	1400X10000	1800X10000 (12600)	2000X10000	2200X10000	2400X10000 (10600)	2600X10600	2700X15600
Hot plate unit pressureMPa	4	4	4	4	4	4.5	4.5	4.2
Cylinder diameter/mm	420	500	600	600	600	650	650	650
Number of cylinders/支	18	16	16/20	16	16	16/18	18	24
Clamping force/KN	700	900	1200	1300	1500	1700	1800	2000
Tensile force/KN	350	450	600	650	750	850	900	1000
Maximum initial tension of a single wire rope/N	400	400	400	400	400	400	400	400
Single wire rope tension adjustment range/N	800-3000	800-3000	800-3000	800-3000	800-3000	800-5300	800-5300	800-5300

1200X12600X2 Batching label specification(2 sets)
1200X12600X2 Batching label specification(2 sets)
Number	Model	Name	Quantity	Material	Remarks
1	GB/T799-1998	Anchor bolt M20X500	20	Level 4.8
2	GB/T5780-2000	bolt M12X50	16	Level 4.8
3	GB/T41-2000	screw nut M12	8	Level 5
4	GB/T41-2000	screw nut M20	20	Level 5
5	GB/T95-2002	washer12	24	100HV
6	GB/T95-2002	washer20	20	100HV
7	STO40-50 VT4 45X45U	Safety chuck (passive end)	2	Finished product	Chaoyang Sanchuang
8	STW40-50 VT4 45X45U+M-8/B(Powered)	Safety chuck (active end)	2	Finished product	Sprocket pitch 19.05 teeth 42
8	STW40-50 VT4 45X45U+M-8/B(Powered)	Safety chuck (active end)	2	Finished product	Sprocket pitch 19.05 teeth 42
9	GB/T1243-1997	Chain (12A) 105 saves 2m	2	Finished product	Pitch 19.05
10	TK58-Y2.2-4P-15.22-M1-I-A	Spiral bevel gear reducer	2	Finished product	Zhejiang Tongli
11	GB/T37-1988	T-bolt M12X60	8	Level 8.8
Fiction:Yang Chengren Date:Jan.10th 2018 Review: Date:
Fiction:Yang Chengren Date:Jan.10th 2018 Review: Date:

1200X12600X2 batcher plus parts details（two sets）
1200X12600X2 batcher plus parts details（two sets）
Number	Drawing number	Name	Quantity	Material	Remarks
1	TS1802-09-00	Rolling device (left drive)	2	Component
2	TS1711-2-1-00	Stand	2	Weldment
3	TS1711-2-1-1	Bottom plate	2	Q235-A
4	TS1711-2-1-2	Rectangular square tube	4	Q235-A
5	TS1711（左）-2-2-00	Bracket (left drive)	2	Weldment
6	TS1711-2-2-1	Bottom plate	2	Component
7	TS1802-09-01	45 square steel	2	45
8	TS1711-2-3-00	safety cover	2	Q235-A
9	TSG1396-01	Reducer sprocket	2	45
10	TS1415-04-02	T-slot plate	4	Q235-A
Fiction:Yang Chengren Date: Jan.10th 2018 Reivew: Date:
